THREAD ROLLING MACHINES FOR THE FASTENERS INDUSTRY
MAIN PAGE OF THREAD ROLLING EQUIPMENT ROLLING MACHINES FOR SCREWS AND SELF TAPPERS ROLLING MACHINES FOR MICRO SCREWS ROLLING MACHINES FOR NUTS ROLLING MACHINES FOR BOLTS, STUDS AND RIVETS ROLLING MACHINES FOR PINS ROLLING MACHINES FOR THIN PRODUCTS WITH NON-STANDARD PROFILE ROLLING MACHINES FOR RODS, TUBES AND SPECIAL PARTS
HIGH SPEED THREAD ROLLING MACHINES IN THE PROTECTIVE COVER FOR THREAD ROLLING ON SCREWS, SELF-TAPPING SCREWS

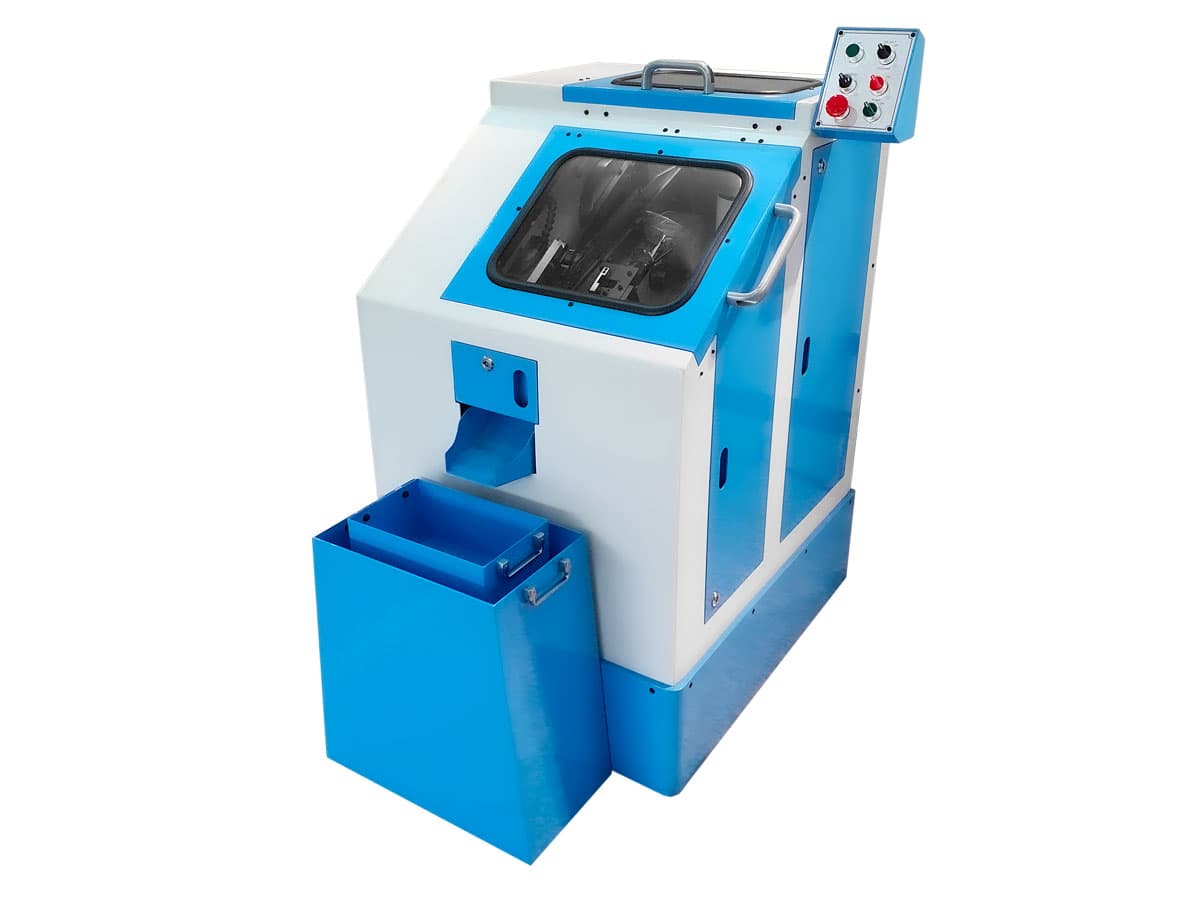

High Speed Thread Rolling Machine in the Protective Cover AR-003THC
| Model | Max. blank diameter | Max. blank length | Performance, pcs/min | Dimensions of dies, mm | Main motor power | Size, L × W × H, cm | Net weight, kg | Gross weight, kg |
|---|---|---|---|---|---|---|---|---|
| AR-003THC | 0.8~2.6 mm | 16 mm | 280~400 350~500 | 15 × 20 × 45~55 15 × 25 × 51~64 | 2 HP | 145 × 105 × 150 | 600 | 680 |

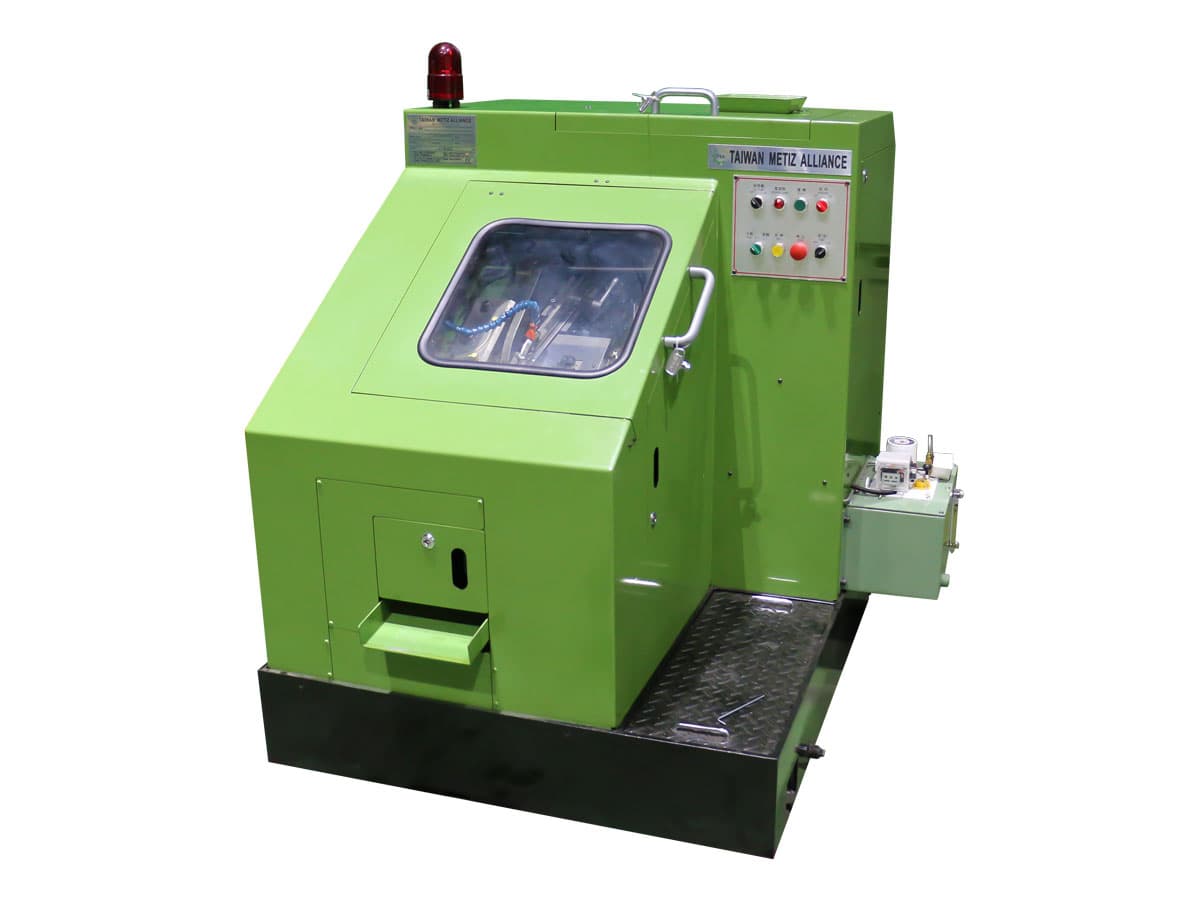

High Speed Thread Rolling Machine in the Protective Cover AR-004THC
| Model | Max. blank diameter | Max. blank length | Performance, pcs/min | Dimensions of dies, mm | Main motor power | Size, L × W × H, cm | Net weight, kg | Gross weight, kg |
|---|---|---|---|---|---|---|---|---|
| AR-004THC | 2~4 mm | 3~30 mm | 300~450 | 19 × 25 × 51~64 20 × 35 × 65~80 | 3 HP | 165 × 114 × 147 | 1000 | 1120 |
High Speed Thread Rolling Machine in the Protective Cover AR-15THC
| Model | Max. blank diameter | Max. blank length | Performance, pcs/min | Dimensions of dies, mm | Main motor power | Size, L × W × H, cm | Net weight, kg | Gross weight, kg |
|---|---|---|---|---|---|---|---|---|
| AR-15THC | 2~6 mm | 64 mm | 200~300 | 25 × 70 × 76~90 25 × 70 × 90~105 | 5 HP | 197 × 155 × 167 | 1650 | 1800 |

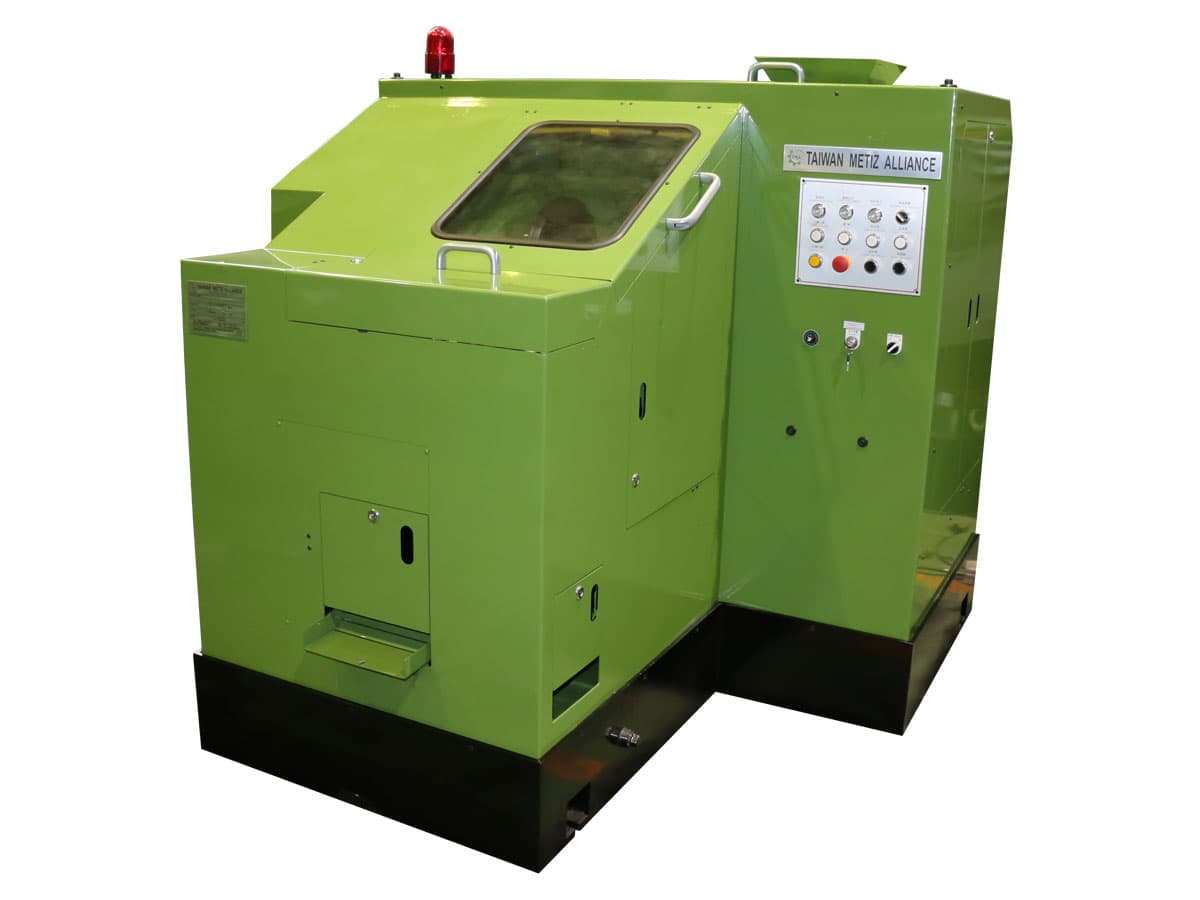

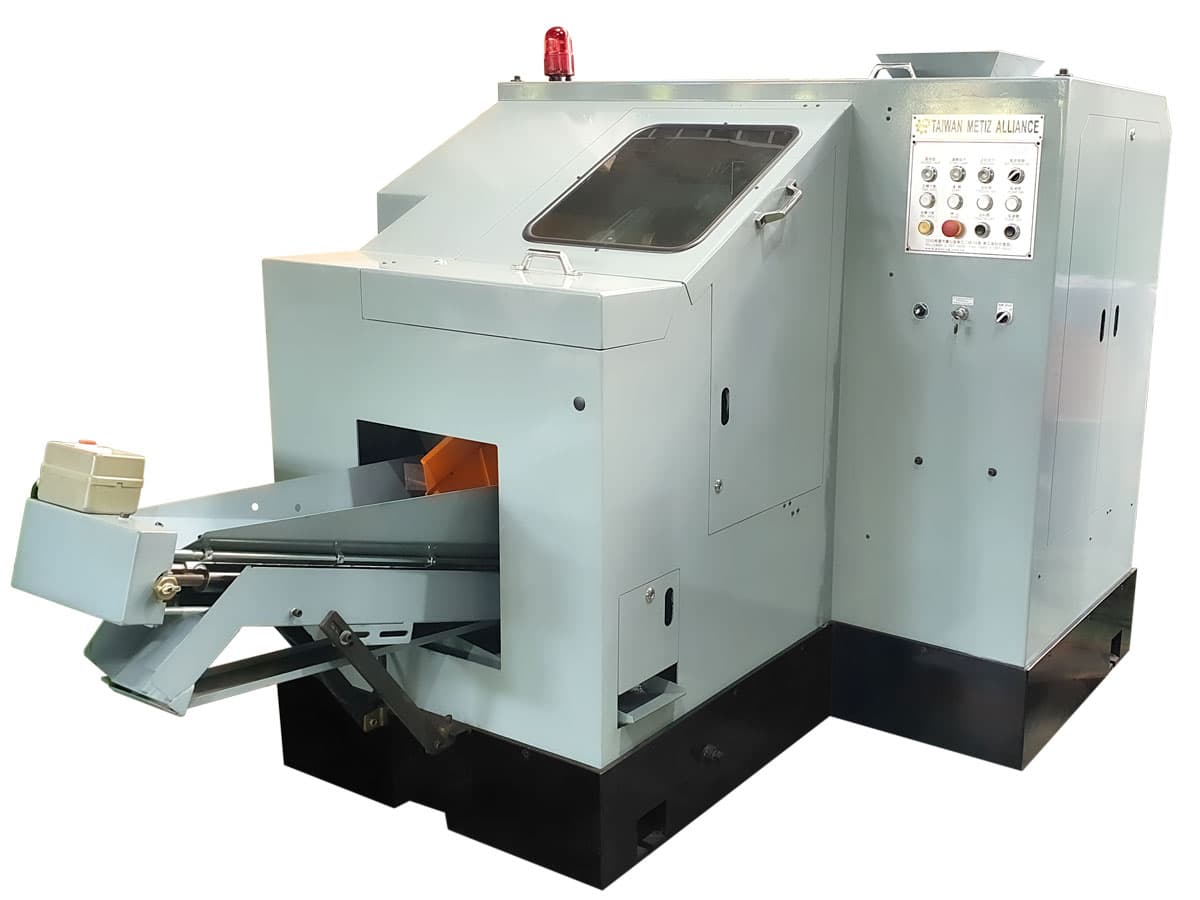

High Speed Thread Rolling Machine in the Protective Cover AR-20THC
| Model | Max. blank diameter | Max. blank length | Performance, pcs/min | Dimensions of dies, mm | Main motor power | Size, L × W × H, cm | Net weight, kg | Gross weight, kg |
|---|---|---|---|---|---|---|---|---|
| AR-20THC | 3-6 mm | 76 mm | 150~200 | 25 × 83 × 100~115 | 5 HP | 230 × 178 × 166 | 2100 | 2300 |

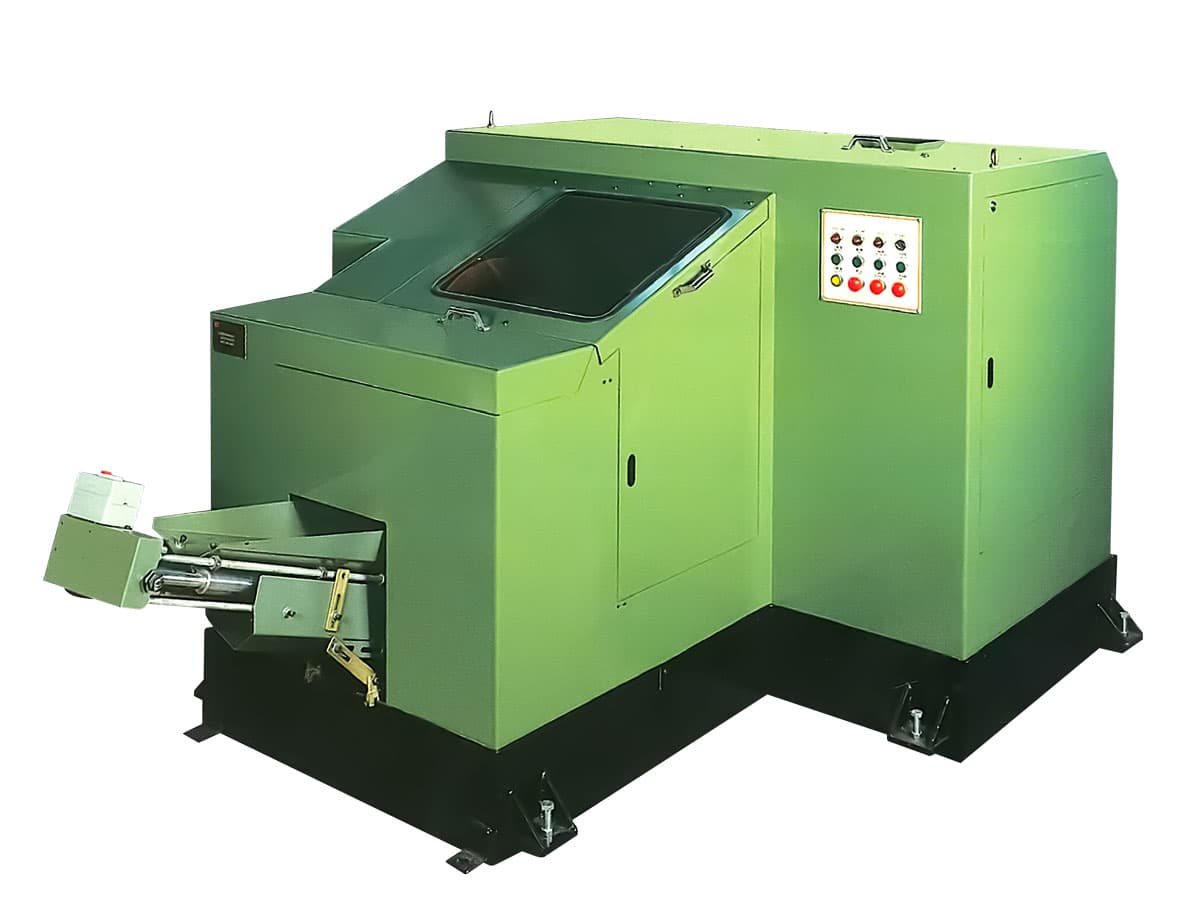

High Speed Thread Rolling Machine in the Protective Cover AR-25THC
| Model | Max. blank diameter | Max. blank length | Performance, pcs/min | Dimensions of dies, mm | Main motor power | Size, L × W × H, cm | Net weight, kg | Gross weight, kg |
|---|---|---|---|---|---|---|---|---|
| AR-25THC | 4~8 mm | 102 mm | 80~100 | 25 × 102 × 127~140 | 7½ HP | 230 × 180 × 200 | 2450 | 2600 |
