COLD FORMING EQUIPMENT FOR LONG PRODUCTS
BOLT FORMER NUT FORMER PARTS FORMER OPEN DIE REHEADER COMPLEX FASTENERS FORMER SELF TAPPERS AND SCREWS FORMER MICRO SCREWS FORMER HEADING OF LONG PRODUCTS STUD FORMER RIVET HEADING WASHERS PRESS COLD-HEADING OF HOLLOW PRODUCTS

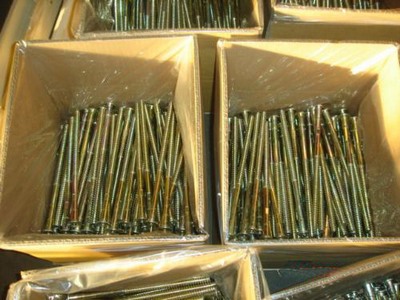

This equipment is intended for heading blanks up to 450 mm in length:
- Diameter 3-13 mm,
- Performance 25-200 pcs/min.

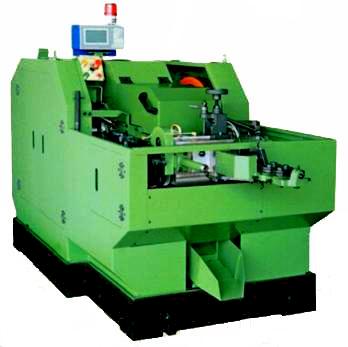

TECHNICAL SPECIFICATIONS OF EQUIPMENT FOR LONG PRODUCTS MANUFACTURING
| Model | Max.blank size (mm) | Max.blank length (mm) | Performance (pcs/min) | Diameter of the main die (mm) | Diameter of the cutting die (mm) | The first punch (mm) | The second punch (mm) | Drive power (PM) | Max thrust engine | Oil pump (PM) | Dimensions L×W×H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JM-10 | 3 | 30 | 180~200 | 30 | 15 | 24 | 20 | 2 | 4 | ¼ | 1550×930×1070 | 1100 |
| JM-15 | 5 | 38 | 180~200 | 34.5 | 19 | 31 | 31 | 3 | 4 | ¼ | 1890×1070×1110 | 1700 |
| JM-15 | 5 | 52 | 130~160 | 34.5 | 19 | 31 | 31 | 3 | 4 | ¼ | 1890×1070×1110 | 1700 |
| JM-15 | 5 | 64 | 130~160 | 34.5 | 19 | 31 | 31 | 3 | 4 | ¼ | 1890×1070×1110 | 1700 |
| JM-15 | 5 | 76 | 100~120 | 34.5 | 19 | 31 | 31 | 3 | 6 | ¼ | 2100×1100×1120 | 1900 |
| JM-20 | 6 | 38 | 160 | 45 | 25 | 36 | 36 | 5 | 4 | ¼ | 2400×1170×1180 | 2300 |
| JM-20 | 6 | 76 | 100~120 | 45 | 25 | 36 | 36 | 5 | 6 | ¼ | 2550×1120×1180 | 2600 |
| JM-20 | 6 | 102 | 66~90 | 45 | 25 | 36 | 36 | 7 ½ | 4 | ¼ | 3158×1350×1290 | 3700 |
| JM-20 | 6 | 165 | 46~63 | 60 | 25 | 38 | 38 | 7 ½ | 6 | ¼ | 3750×1410×1470 | 4200 |
| JM-20 | 6 | 200 | 30~50 | 60 | 25 | 38 | 38 | 7 ½ | 6 | ¼ | 4100×1320×1470 | 4900 |
| JM-20 | 6 | 250 | 30~50 | 60 | 25 | 38 | 38 | 7 ½ | 6 | ¼ | 4900×1410×1470 | 5700 |
| JM-20 | 6 | 400 | 26 | 60 | 25 | 38 | 38 | 10 | 6 | ¼ | 6204×1310×1774 | 7200 |
| JM-25 | 8 | 50 | 80~130 | 60 | 28 | 38 | 38 | 7 ½ | 4 | ¼ | 2700×1490×1330 | 4600 |
| JM-25 | 8 | 102 | 66~90 | 60 | 28 | 38 | 38 | 7 ½ | 4 | ¼ | 3590×1660×1520 | 4900 |
| JM-25 | 8 | 152 | 50~70 | 60 | 28 | 38 | 38 | 10 | 4 | ¼ | 4150×1600×1520 | 5400 |
| JM-25 | 8 | 200 | 39 | 60 | 28 | 38 | 38 | 15 | 4 | ¼ | 4913×1580×1610 | 7700 |
| JM-25 | 8 | 305 | 30~48 | 60 | 28 | 38 | 38 | 10 | 6 | ½ | 4920×1720×1460 | 8100 |
| JM-30 | 10 | 76 | 70~80 | 80 | 40 | 50 | 50 | 15 | 4 | ½ | 3980×1770×1470 | 7600 |
| JM-30 | 10 | 152 | 52~60 | 80 | 40 | 50 | 50 | 20 | 4 | ½ | 4625×2000×1765 | 8200 |
| JM-30 | 10 | 200 | 42~48 | 80 | 40 | 50 | 50 | 20 | 6 | ½ | 5030×1850×1570 | 7700 |
| JM-30 | 10 | 305 | 26~30 | 80 | 40 | 50 | 50 | 20 | 6 | ½ | 6810×2045×1800 | 8400 |
| JM-30 | 10 | 76 | 26 | 80 | 40 | 50 | 50 | 20 | 6 | ½ | 7200×2150×1820 | 14200 |
| JM-40 | 13 | 152 | 60~70 | 93 | 46 | 60 | 60 | 30 | 4 | ½ | 4460×1870×1600 | 10000 |
| JM-40 | 13 | 200 | 38~44 | 98 | 48 | 68 | 68 | 25 | 4 | ½ | 5770×1950×1720 | 14100 |
| JM-40 | 13 | 300 | 26~30 | 98 | 48 | 68 | 68 | 30 | 6 | ½ | 7316×2090×1840 | 13500 |
| JM-40 | 13 | 350 | 26~30 | 98 | 48 | 68 | 68 | 30 | 6 | ½ | 8605×2210×1930 | 15500 |
| JM-40 | 13 | 450 | 25 | 98 | 48 | 68 | 68 | 30 | 6 | ½ | 9000×2310×2020 | 19000 |
